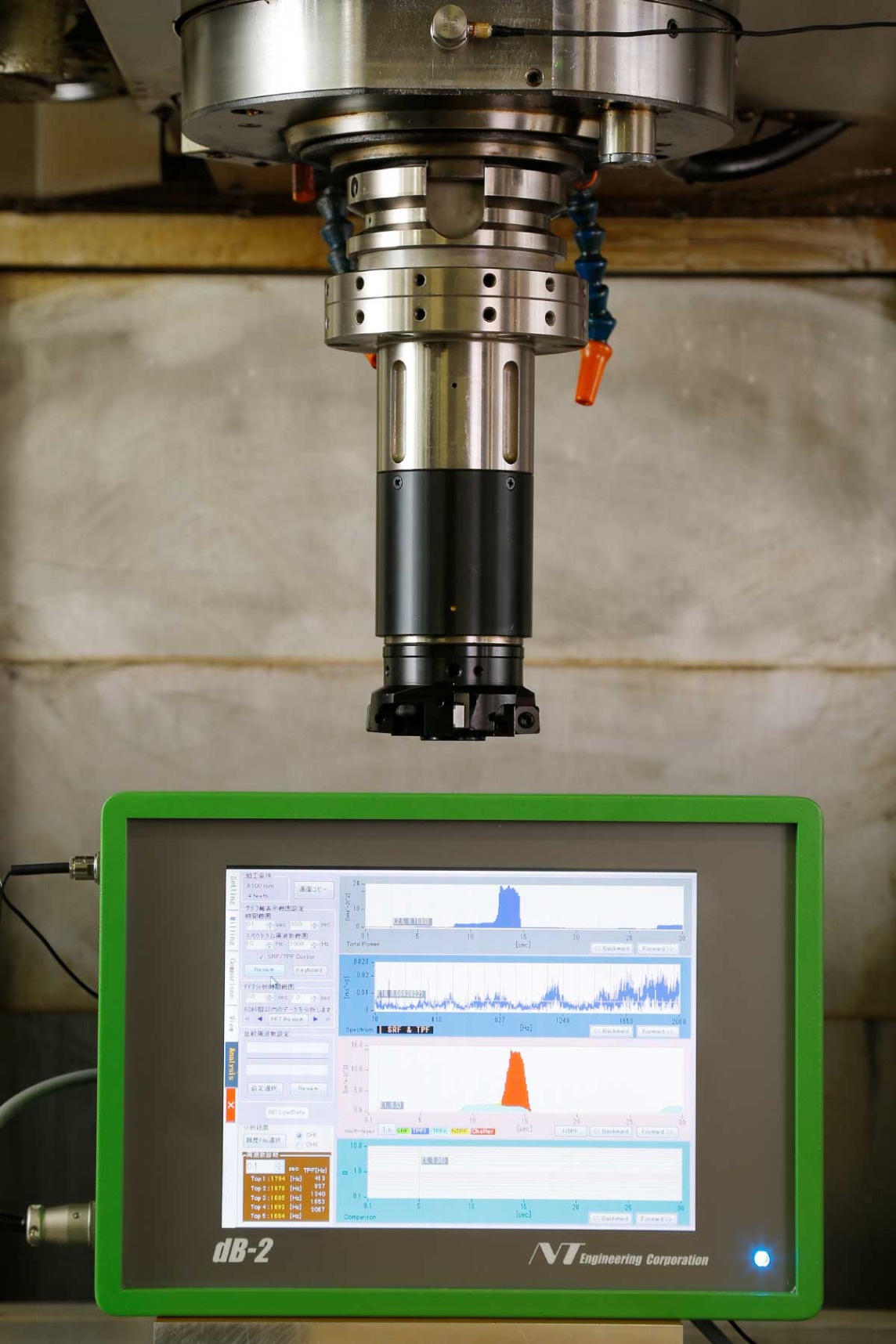

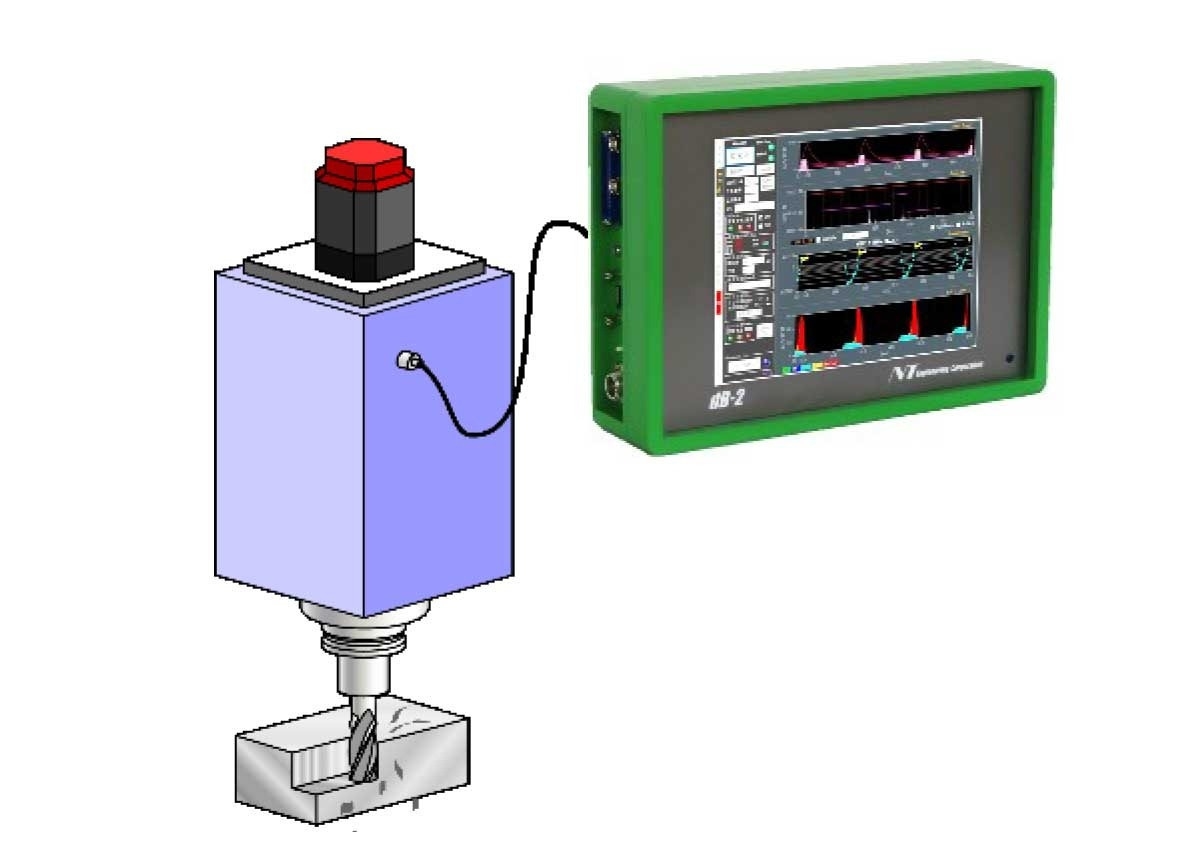

Monitor machining on behalf of the machine operator.
The machining state is distinguished by 5 colors like the signal of a traffic light.
Product features
The clue to knowing the processing state, is to focus on the processing sound and vibration of the same source. Delicate and accurate discrimination can be made by looking at the vibration frequency calculated by Fourier transformation. The processing status is automatically monitored in the "TPF" domain. Like a traffic light, it identifies the processing state and captures signs and abnormalities along with color display. dB-2 monitors machining with total power and frequency spectrum.
Advantage of introduction
- By load current monitoring, chatter may be overlooked. If you take the machining vibration including a lot of machining information, you can understand the state as if you hear the machining sound.
- The best machining information is not only by the strength of the machining vibration but also by Fourier transform frequency. Machining vibration frequency is linked to machining information.

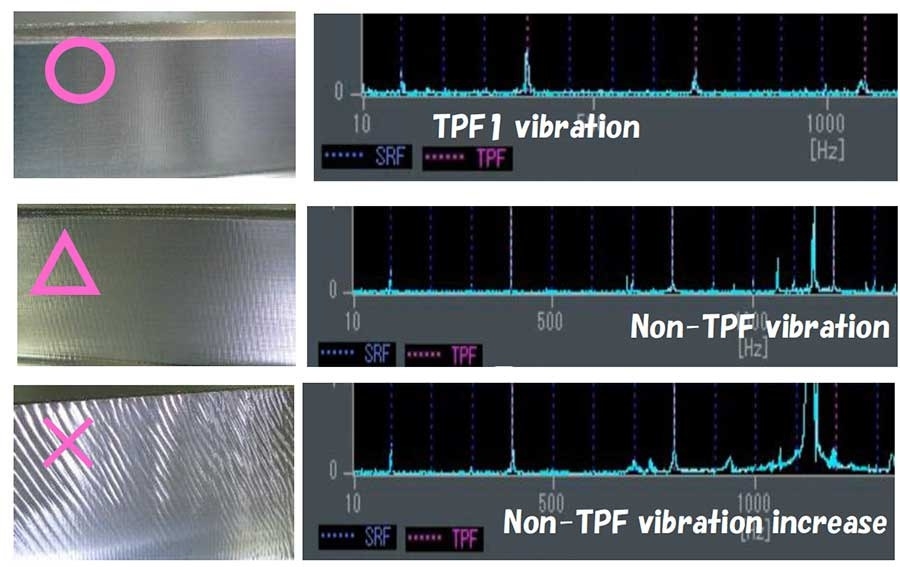

- The machining vibration is automatically monitored macroscopically by dividing into two parts, the passing frequency of the tool "TPF vibration" and the other "Non-TPF vibration".
- Avoid also troublesome threshold setting in relative comparison.

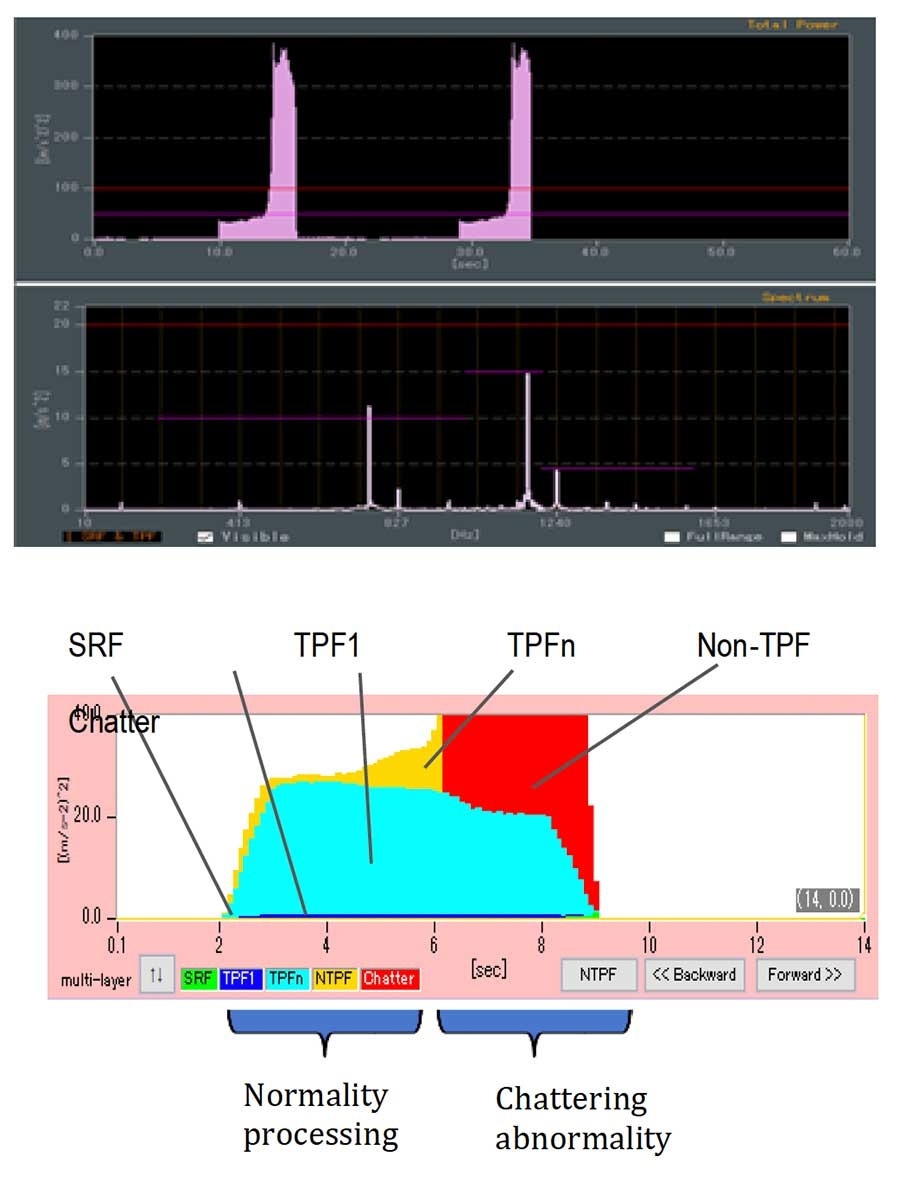

- Like a traffic signal, displayed in 5 colors that clearly show the processing status.<br>The red color shows a chattering abnormality, indicating the need to stop processing or change the conditions.
- The cutting vibration is displayed in real time with the strength of the time series. The machining vibration is used as a frequency spectrum to recognize and monitor the status of machining quality.
- In-process monitoring that detects abnormalities at an early stage and avoids defects by taking corrective actions.
- Machining monitoring based on machining sound and machining vibration of the same source is "Means for Visualization of Machining"
- This device is a milestone product to support the digital twin "IoT of machines".
Edge device of intelligent machine

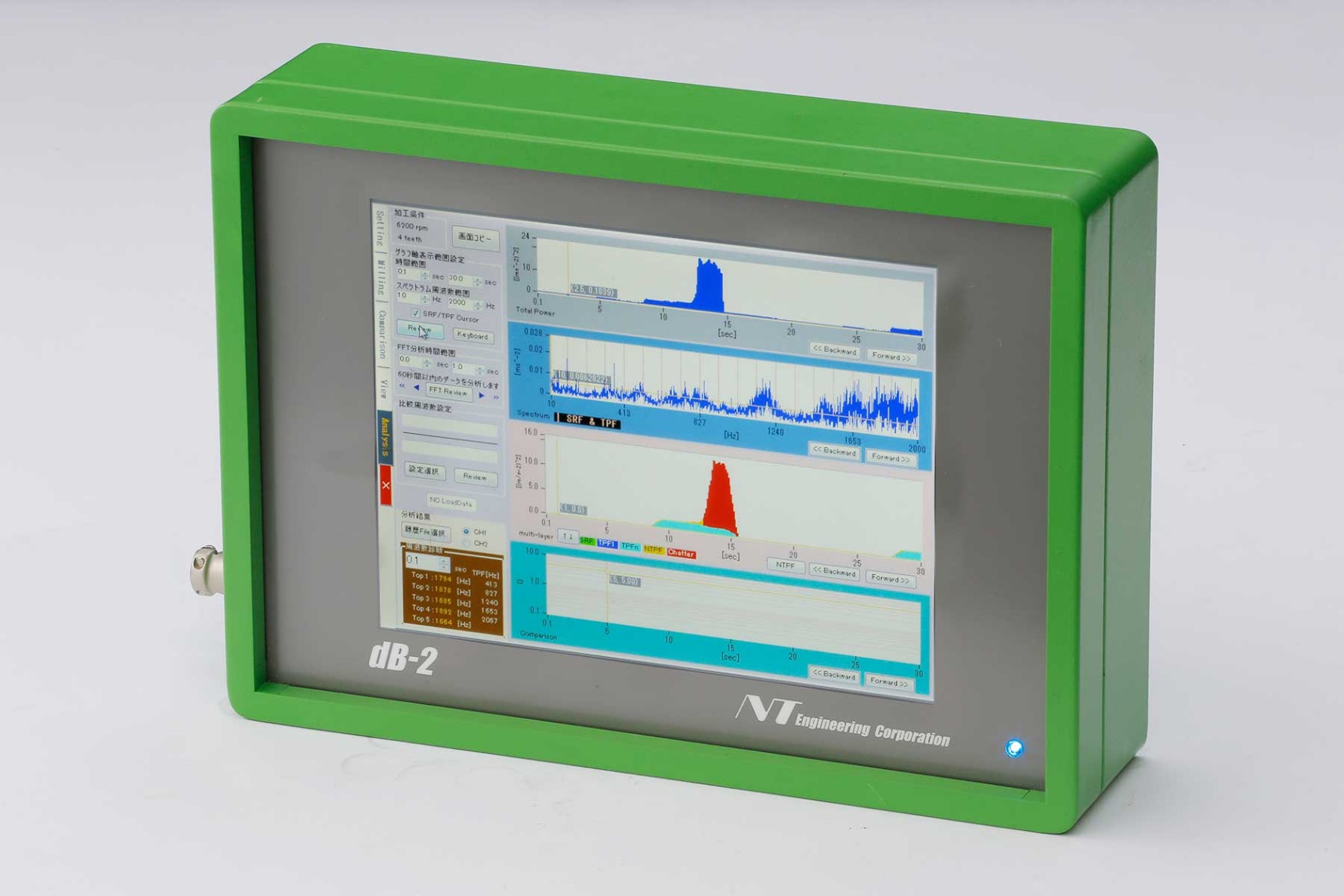

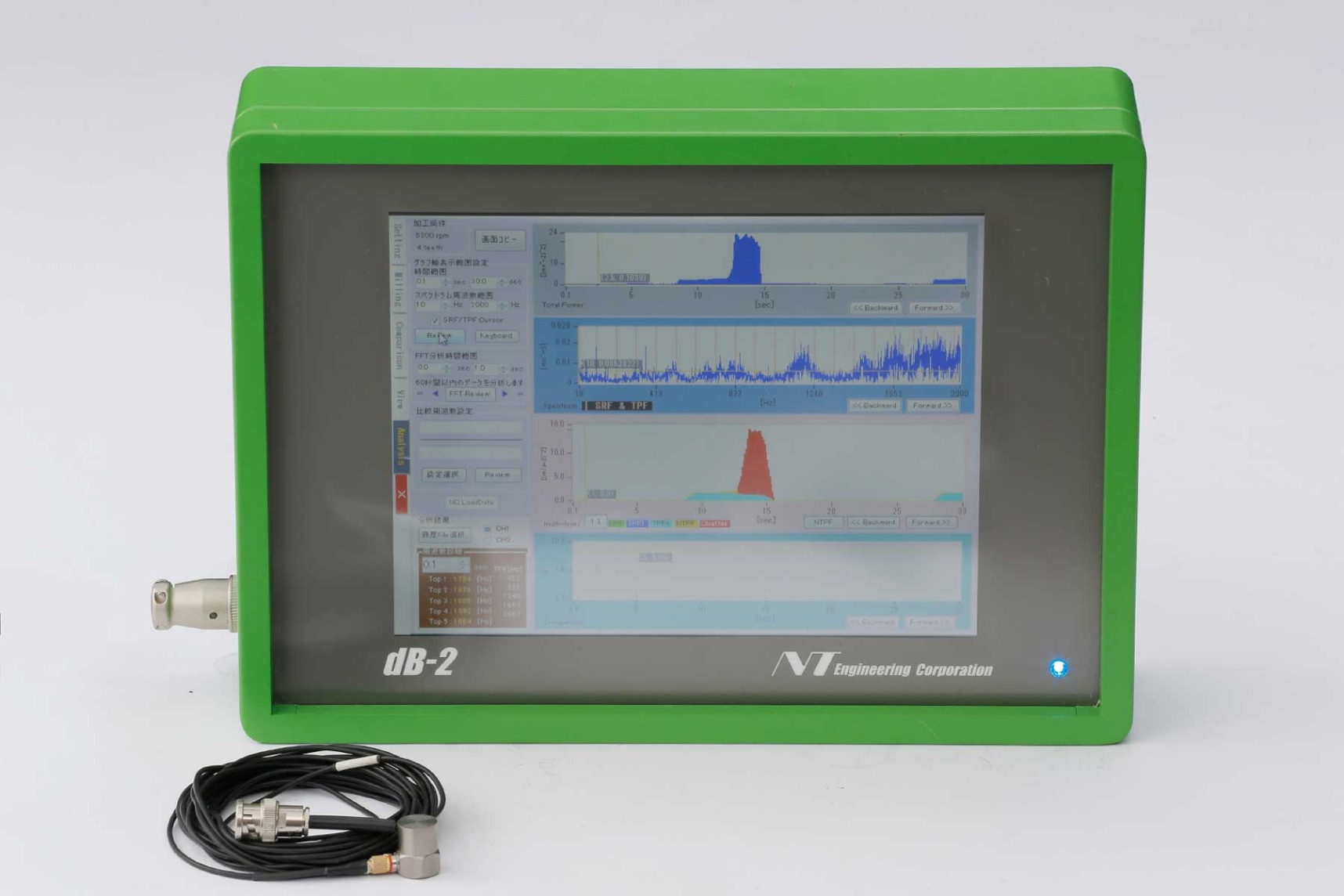

dB-2 Controller
- Number of measurement channel terminals:
- 2ch input/only one sensor is attached
- Screen size
- 10 inches (with touch panel)
- Size
- W:320mm×H:245mm×D:80mm
- Weight
- 4.5kg
- Power connector included
- Power supply: AC100V-240V
- input/output signal
- DC24V(Only the connector is attached and the wiring must be arranged by the customer)
USB connector terminal
VGA connector terminal
With LAN connector terminal
