Equipped with the functions of pneumatic control and the function of convert display/judgement from the detective pneumatic pressure to measuring value.
TC700
Product features

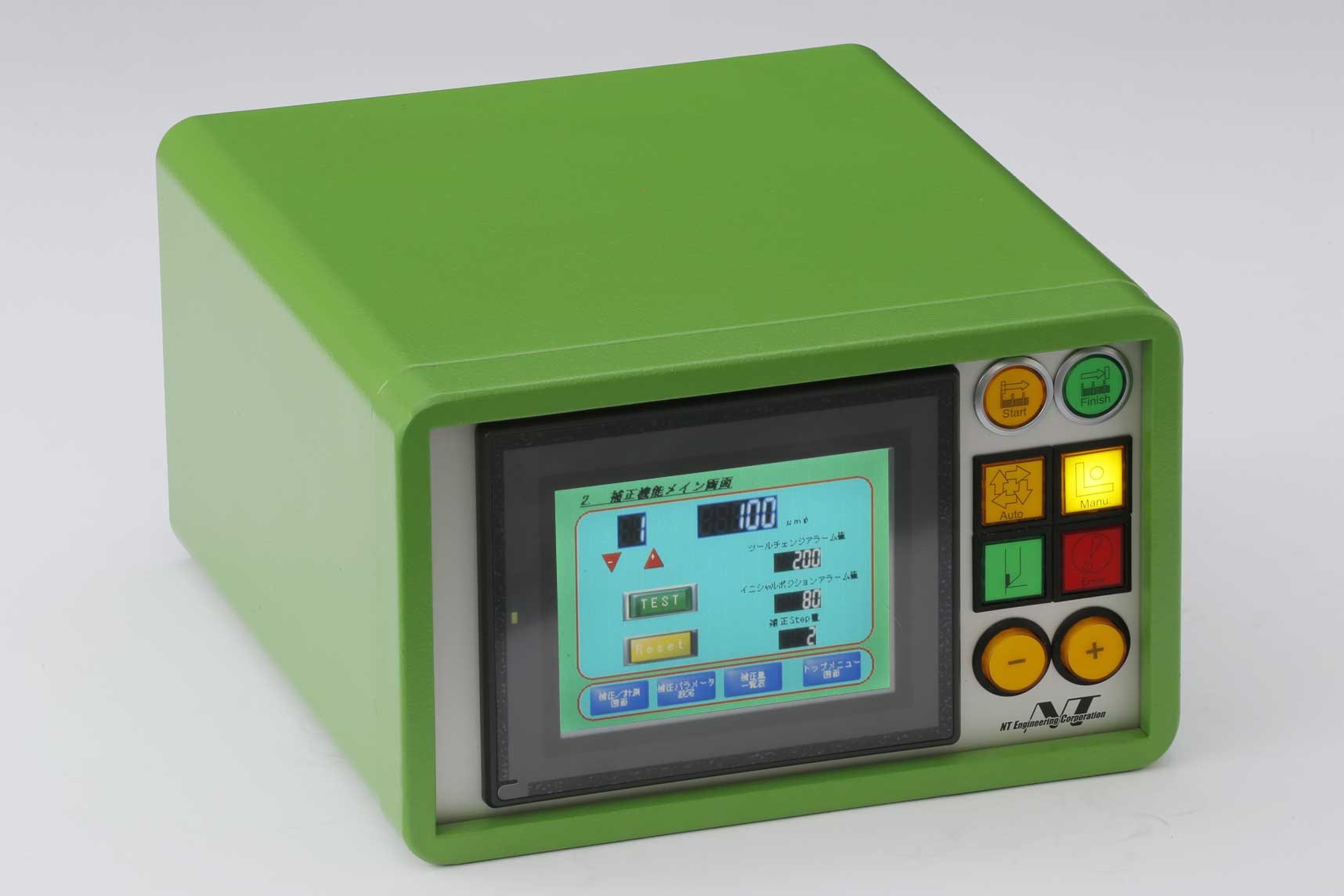

This is a complex type control unit for controlling functional tool holders (pneumatic/hydraulic type correction holder, pneumatic type correction holder and pneumatic type honing holder). It is used in combination with the configuration accessories of each holder.

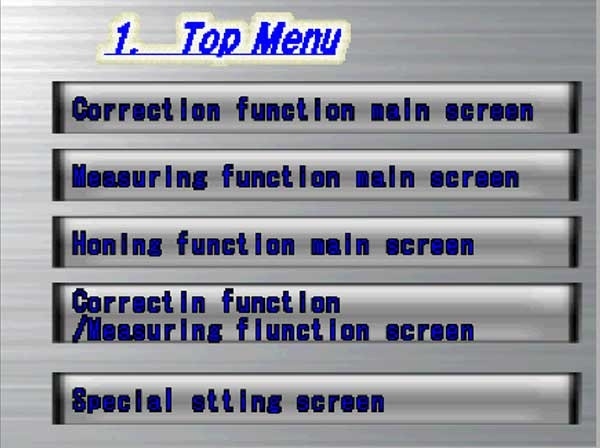

Mainly for general-purpose machines (machining centers), when using the above holders, it will be used by switching to each function screen according to the selection of each holder.
Each screen has a maximum of 10 channels, and when you call the holder with the channel number to be used, you can give and control individual instructions for each holder.
However, only one channel is active (in use).
(One axis can be controlled)
- Power supply
- AC100V～AC240V
- Control signal
- DC24V
Input signal common is positive/negative bidirectional
Output signal common is positive common (PNP type)
Negative common (NPN type) is optional - Screen
- Touch panel type LCD monitor
- Power consumption
- 75W
