The heart that indicates pneumatic control values.
Change the digital values with plus/minus push button.
Anyone can easily give correction instructions.

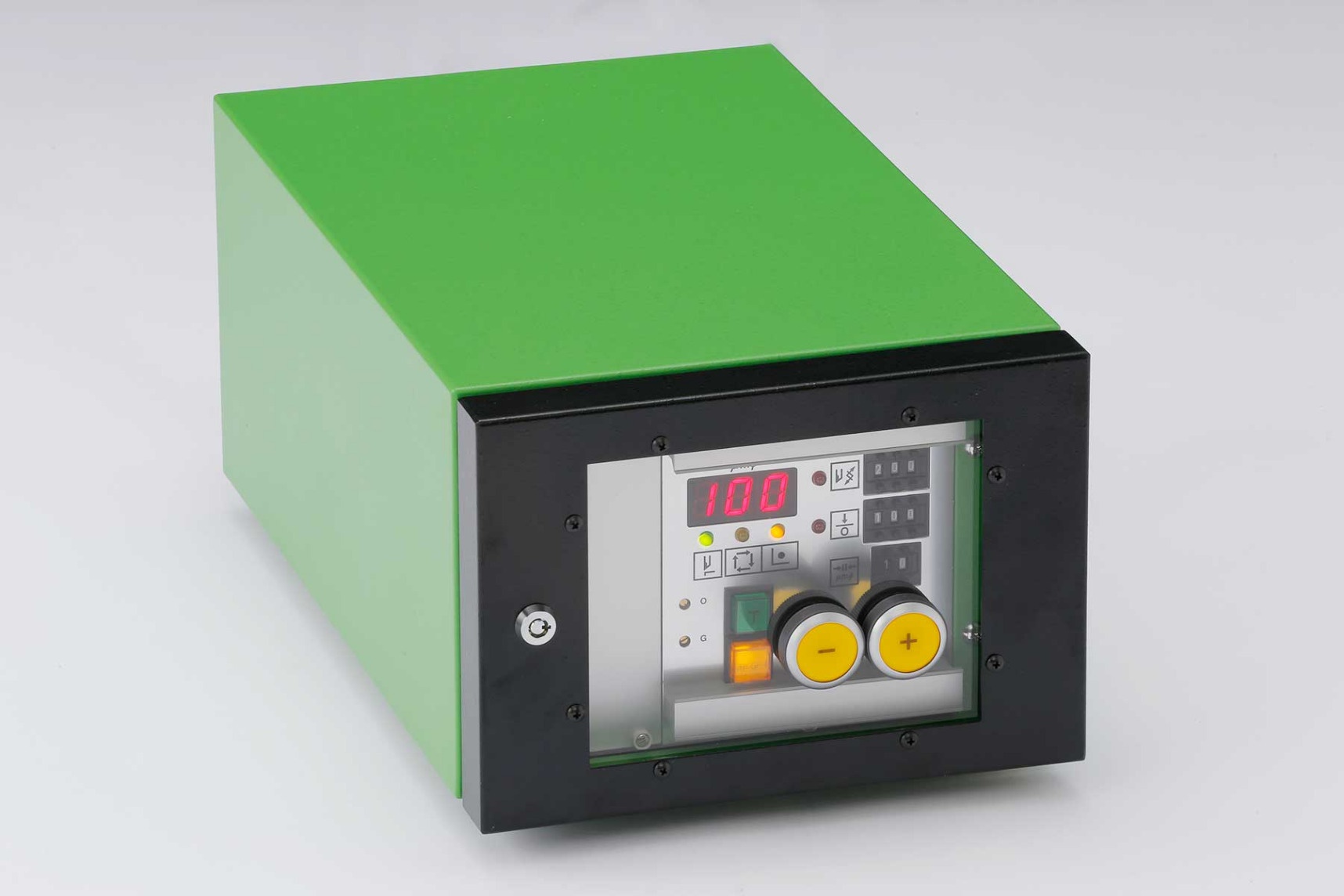

9575 Tool Correction controller

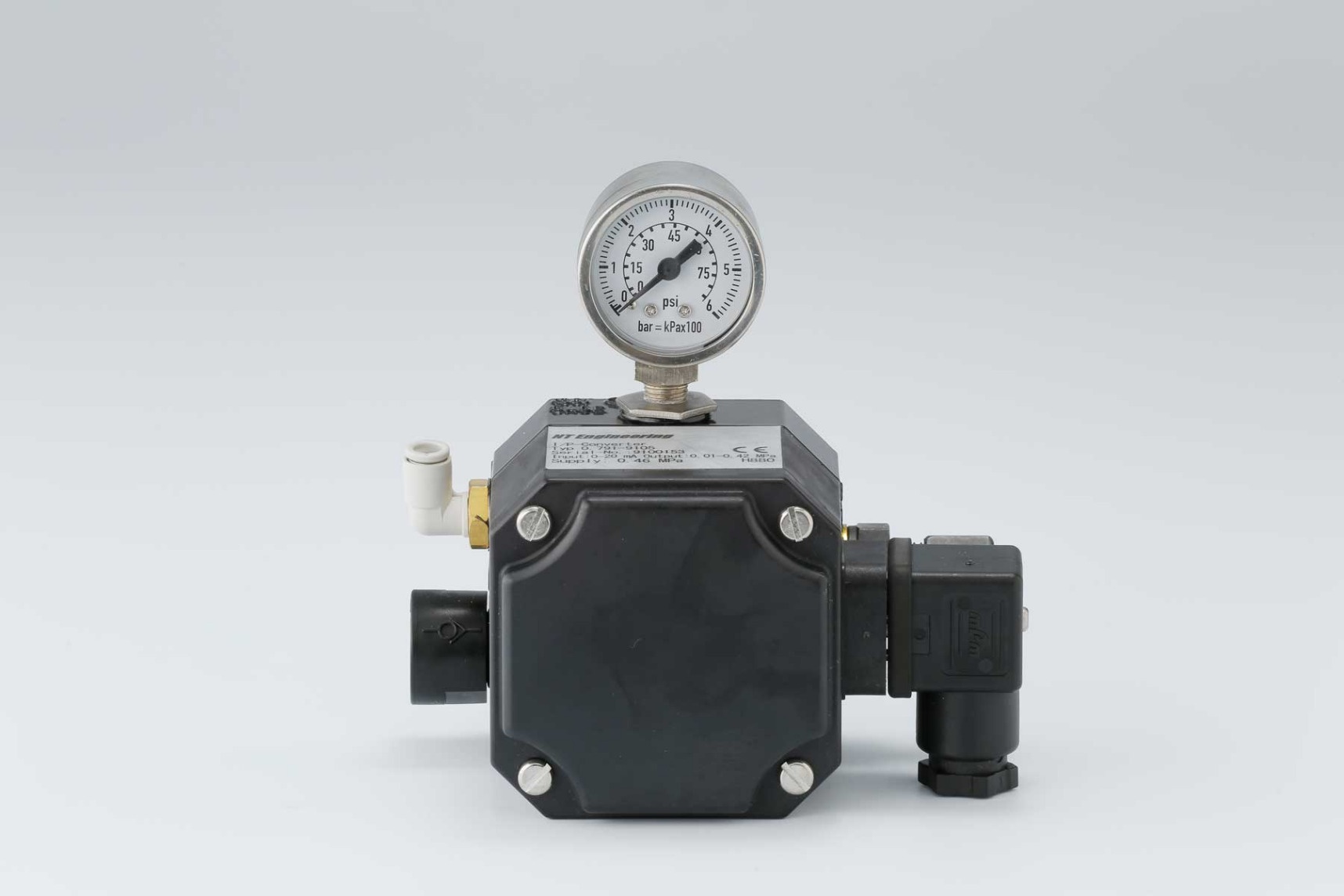

External I/P converter (precision proportional control valve)
Product features
Correction control unit
Standard type for special purpose machines.

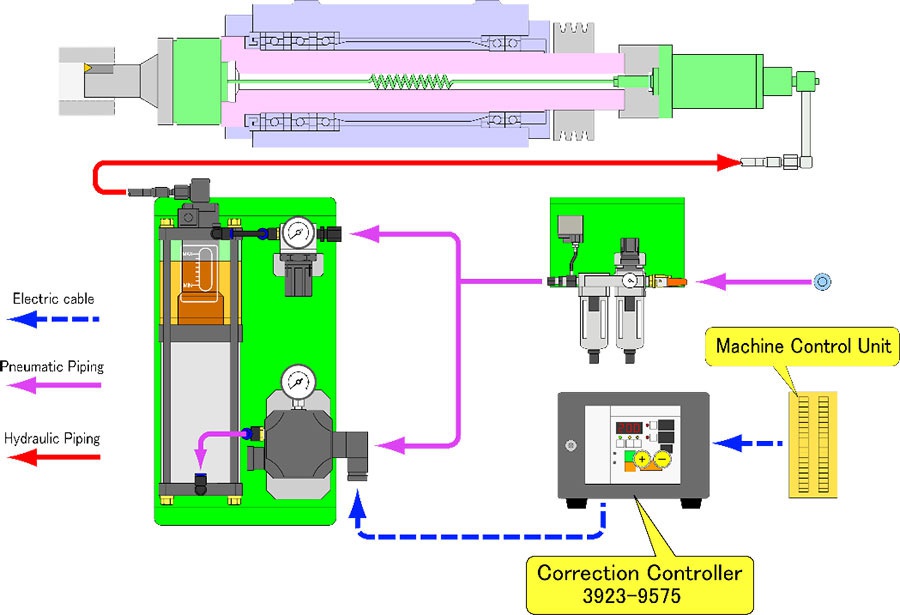

Most often applied with simple logic control. Pneumatic control tower for pneumatic-hydraulic correction system control. Connected with the machine control unit, it performs the correction operation in conjunction with the machining sequence.
It accepts plus/minus correction signals based on the five classification judgment signals from the measuring instrument through the machine control unit.
This enables automatic feedback correction.
(Change of correction amount is quantitative step correction)
- Power supply
- AC100V
- Input signal
- DC24V
- Correction step amount
- 2 digit 1～ 99 μmφ(Preset)
- Correction amount display
- 3 digit LED
- Power consumption (steady state)
- 20VA
Next generation successor model TC800
