With a pivot-type elastic deformation correction head with no sliding parts, taper shape processing is possible.
Product features

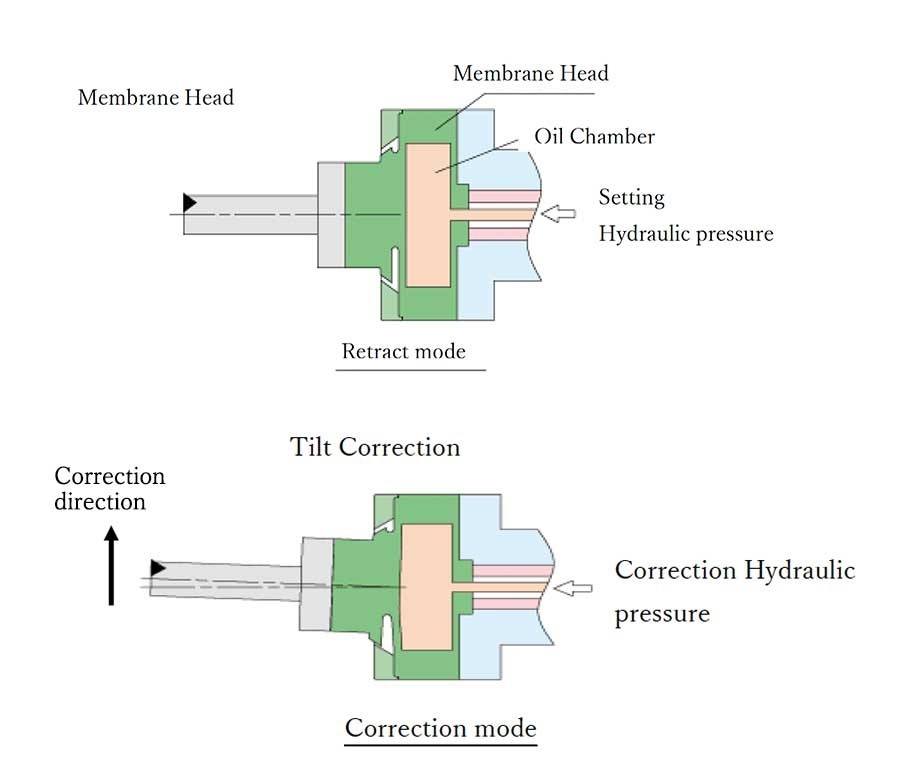

- "Membrane head" that operates by elastic deformation of pivot
- Since the correction head has a sliding part-less structure, it has essentially no rattling and can maintain stable and highly accurate correction for a long period of time.
- The head, which is designed to be less affected by centrifugal force, has a center of gravity shift due to correction that is Minimum.

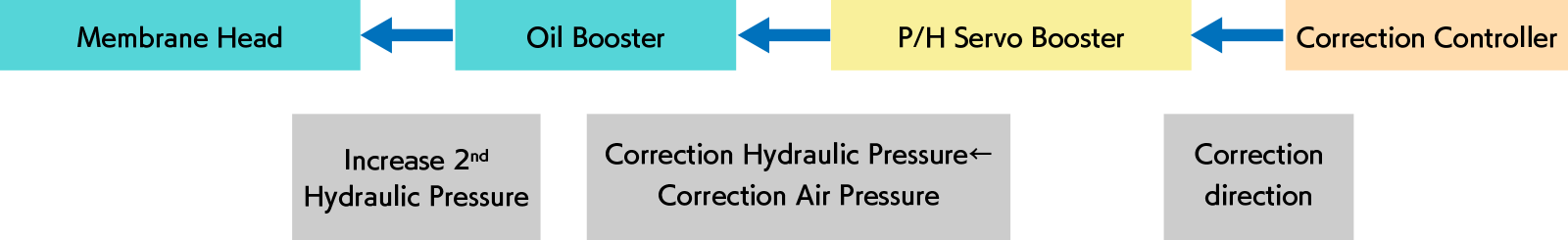

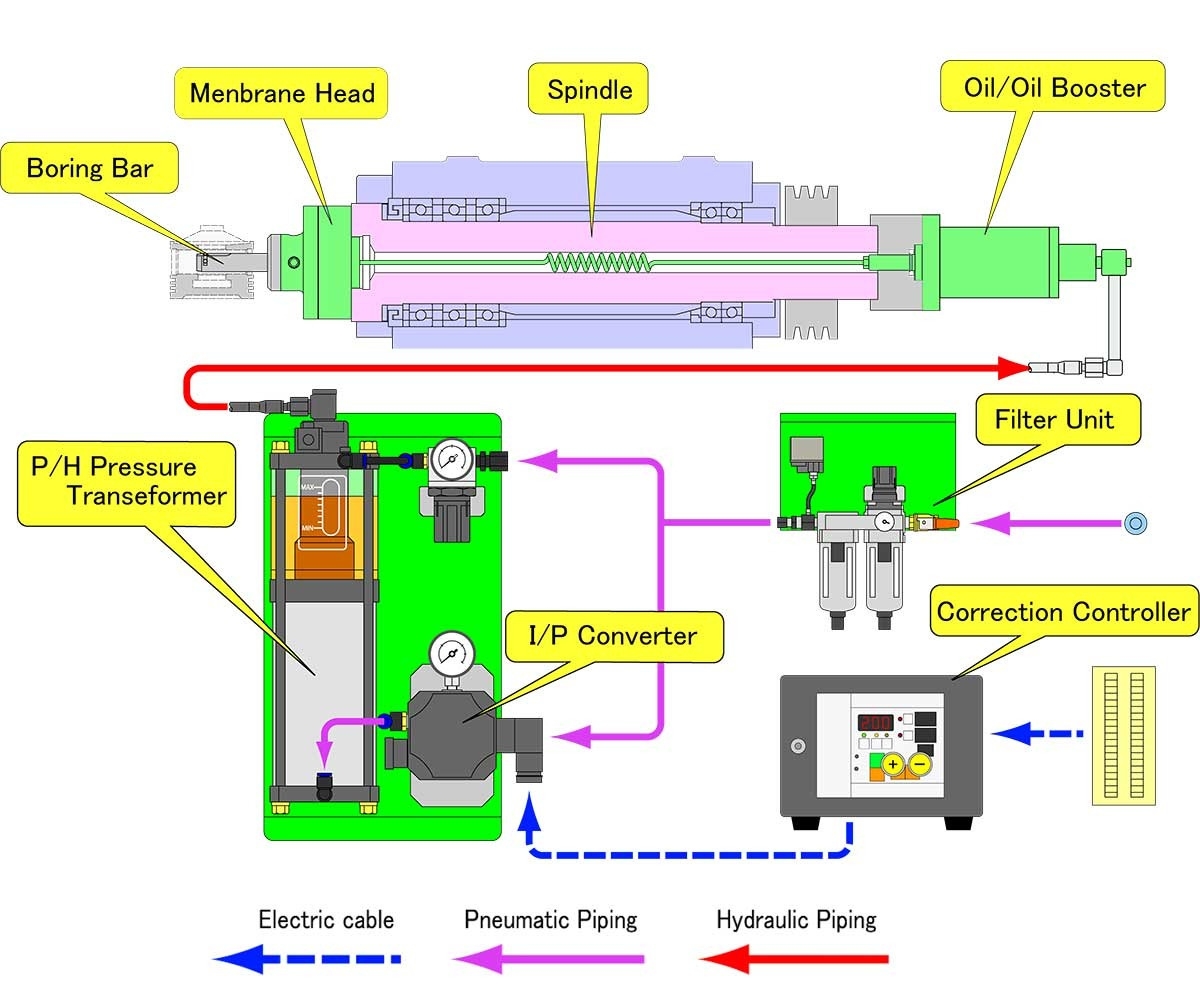

The system configuration is an air-hydraulic correction system that controls air by electropneumatic conversion using an I/P converter (high-precision proportional control valve) and increases the air pressure to hydraulic pressure.
Achieves highly proportional correction operation with highly accurate hydraulic power control.
By combining with a correction controller that incorporates taper processing software, it is possible to perform tapered boring processing by controlling the correction pneumatic pressure.
Not only straight holes but also tapered shapes are possible.
